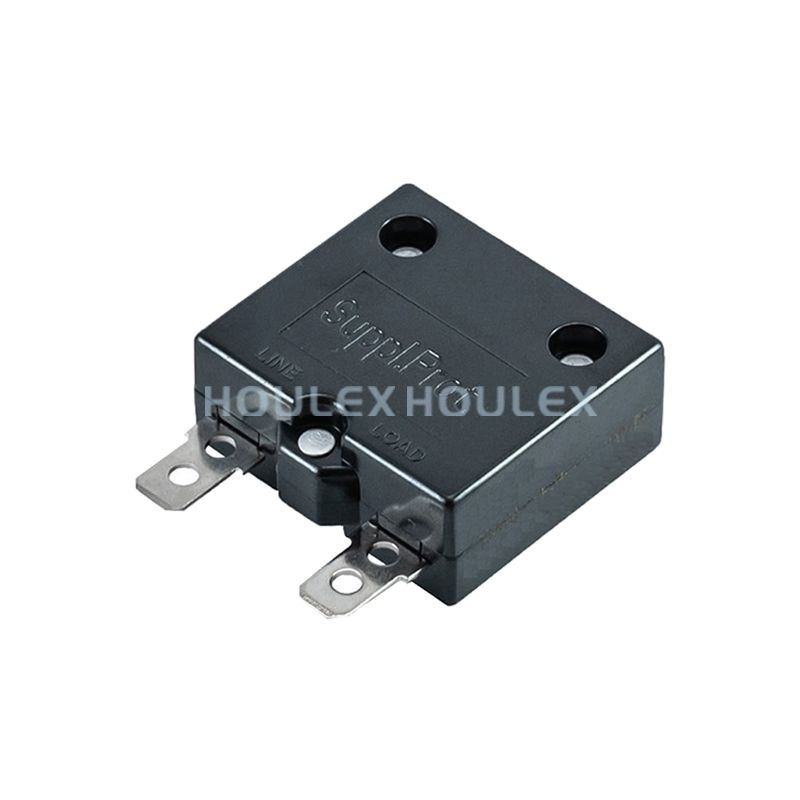

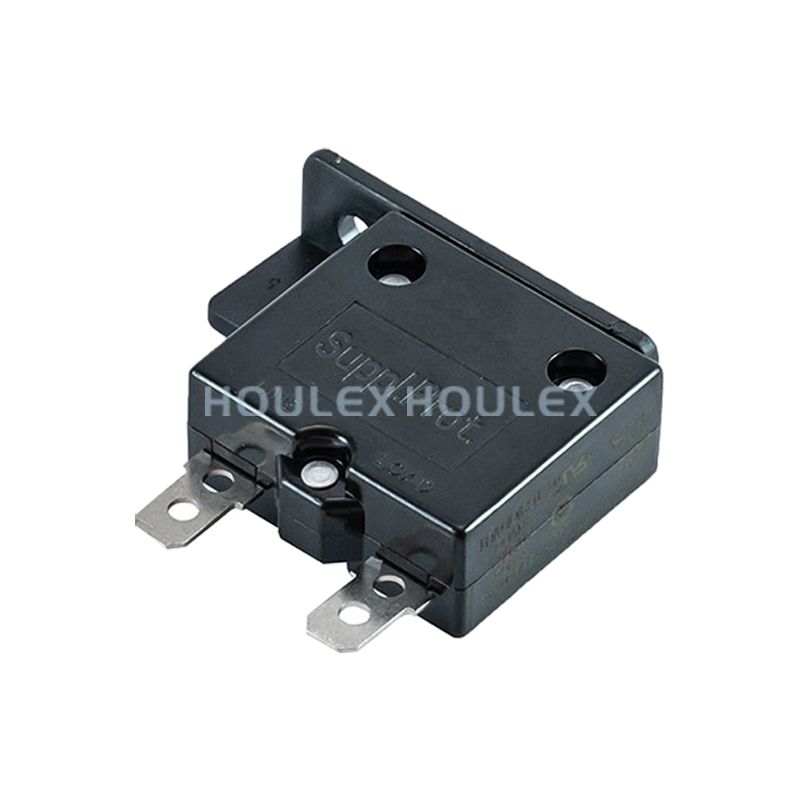

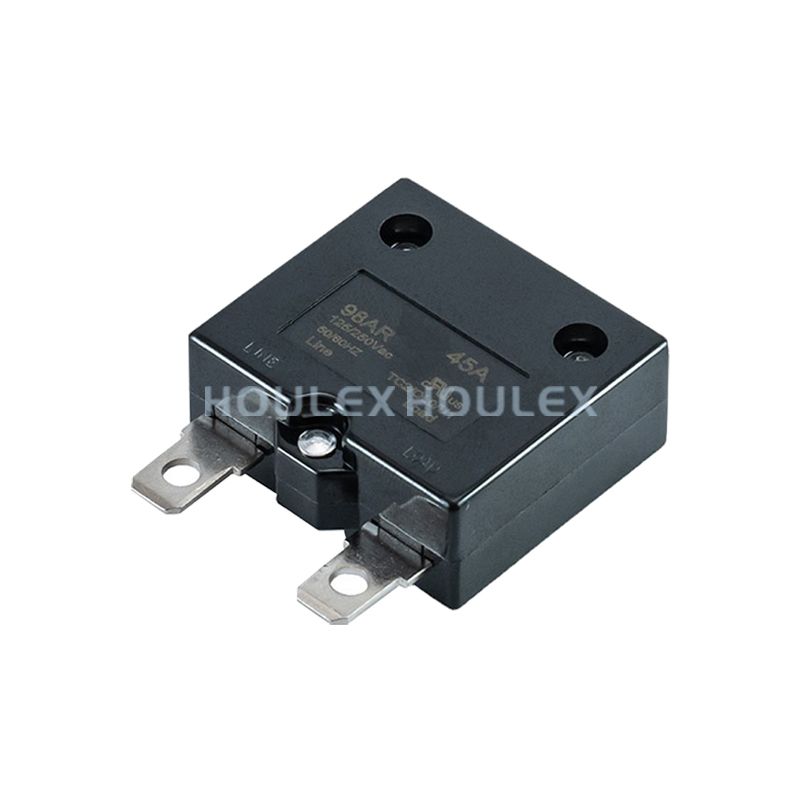

98AR-Series

98AR-Series

额定电流(rating)3A-60A

输入电压(Input Power)125VAC/250VAC/24/32VDC 50-60Hz

耐电压强度(Withstand voltage strength)1500VAC/1min,漏电电流≤0.5mA

(1500VAC/min,the leaked current is less than≤0.5mA)

绝缘电阻(Insulation Resistance)500VDC 1Min100MΩ

额定短路能力(Rated short-circuit capacity)125VAC/1000A250VAC/1000A

额定通断能力(Rated breaking capacity)6倍额定电流

6 times rated current)

复位方式(Reset):自动复位(Auto Reset)

复位时间(Reset Time)60s”内回复(Within 60s)
